Using OBS with OTTfeed RTMP livestream solution

121 views Less than a minute 0

First step is to request an “RTMP solution for Livestream” feature.

Once you have this feature enabled, you will receive an “RTMP server” URL and a “Stream Key” that looks something like this:

​RTMP server: rtmp://encoder.ottfeed.com/live?e=TUaQUg0V0pXMUVTRko1Z….

Stream Key: 52424bb2312

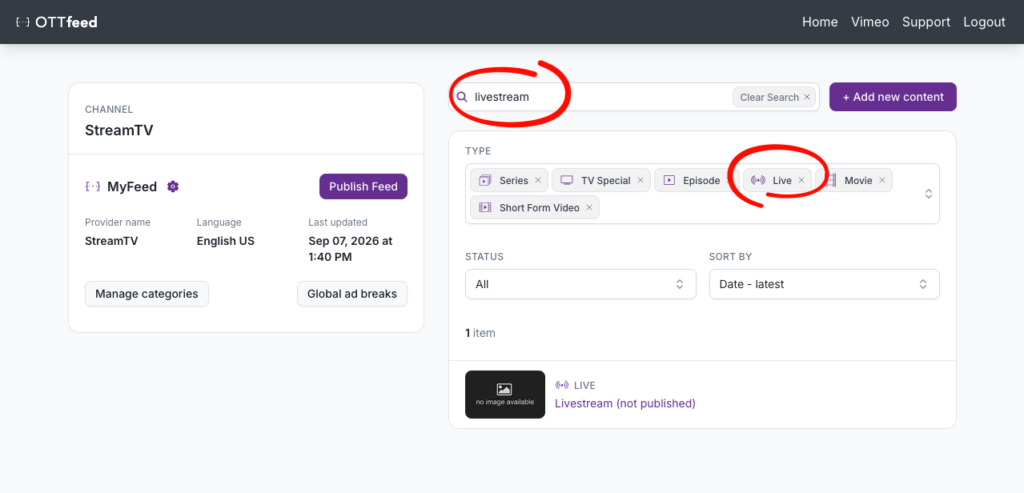

In addition, a Livestream entry with a sample metadata will be create under your OTTfeed account, you can find it by searching livestream on the OTTfeed homepage (make sure you have “Live” selected in the Type dropdown).

OTTfeed Livestream

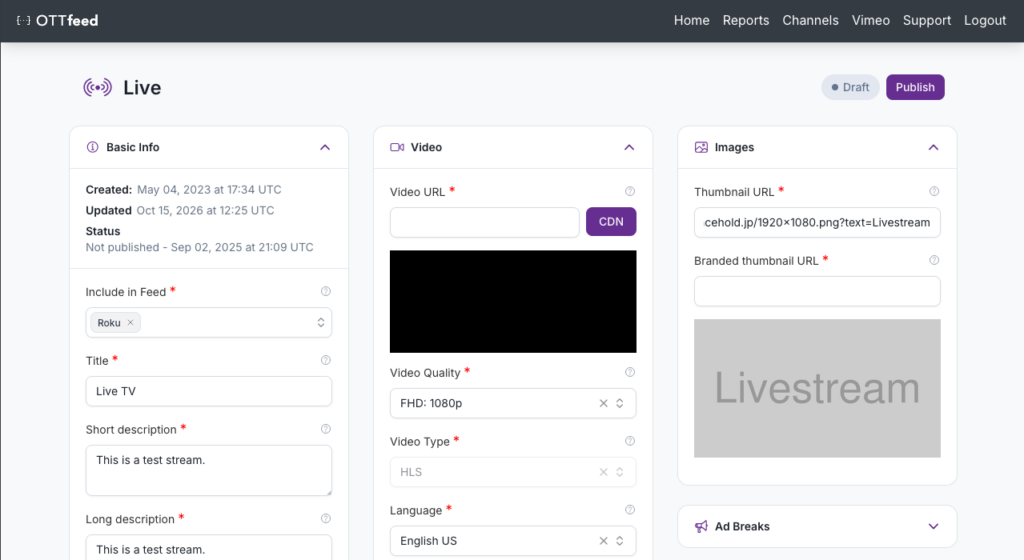

Click on the Livestream and update your metadata (title, description, thumbnail etc.).

OTTfeed livestream metadat

Don’t forget to add your Livestream to one of your categories and publish the feed.

Wait for your livestream to appear on your Roku Channel, if you are using Roku Direct Publisher this will take up to 24 hours for the new content feed to be ingested by the Roku server, but if you are leasing our custom Roku channel the content update is instant.

Now you are ready to livestream to your Roku channel by using OBS Studio one of the most popular applications for live streamline.

Here is how to configure your OBS to work with our RTMP server:

1 Open your OBS application, click on “Settings”.

OBS setting

​2. Go to “Stream”, select Custom, and enter your “RTMP server” & “Stream key” that you received from OTTfeed.
OBS streaming
3. Go to “Video” section and select the “Output” to 1280×720 for 720p or 1920×1080 for 1080p.
OBS video output
4. Go to “Output” section and enter 2500 Kbps for 720p or 3500 Kbps for 1080p video output, and click “OK”
OBS quality
5. Click on Start streaming, if you see a green bar on the bottom that means your are streaming live directly to your Roku channel.
OBS streaming live
